Each cell in your body is producing its own power, but we’re not using that.
Every beat represents wasted mechanical work that centralized batteries ignore today.
Conventional pacemakers typically rely on a centralized battery, although researchers have also developed experimental battery-free designs.
That battery will be big, limited in capacity, and difficult to shrink without losing charge, forcing designers to choose between longevity and comfort.
Engineers at the University of Massachusetts attempted to model biological processes rather than just copying them. They pursued distributed generation instead of centralized storage entirely.

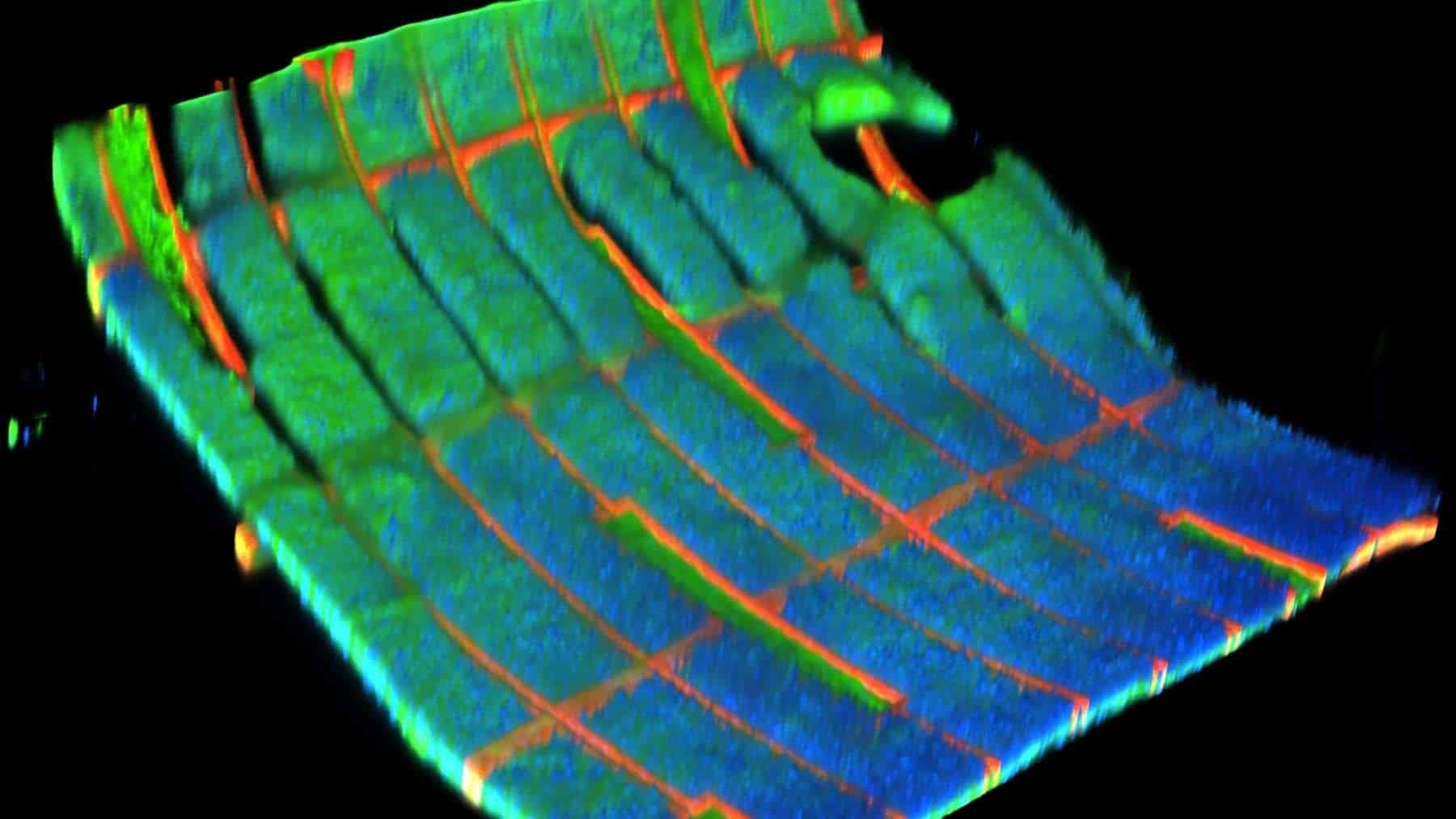

Growing cardiac cells around a flexible ceramic ribbon
The researchers used thin ribbons of lead zirconate titanate that turned mechanical action into electric energy. But on its own, PZT is very stiff and brittle, incompatible with soft, constantly moving cardiac tissue.
Therefore, the researchers bonded the PZT ribbons to an ultra-thin polymer-based substrate that mimics the properties of an extracellular matrix, allowing natural adhesion and synchronized contraction.
They seeded the substrate with human cardiac cells that had been grown in vitro. The cells enveloped the ribbons, pulling against them with each beat and converting contraction directly into charge without external wiring.
Each time the heart beats, it causes the ribbons to flex. Each flex creates electrical charge through piezoelectric conversion at the cellular interface.
That output was sufficient to suggest feasibility for low-power sensing.
Testing why 10x power density matters when volume is the limit
The biohybrid mesh created by researchers at the University of Massachusetts Amherst generated approximately 10 times greater power density compared to systems utilizing a centralized energy source.
However, the research so far exists only in the lab, and no implanted devices have ever been placed in a living heart.
Power density refers to the amount of power that can be generated within a specific volume. That distinction matters when implants must fit within millimeters.
For implants, size is often the limiting factor. A pacemaker cannot become larger to provide additional battery life because chest anatomy strictly constrains device footprint.
By avoiding this trade-off, the mesh achieves higher performance levels.
How stacking and earlier meshes point to this harvester
Ultrathin layers can be stacked vertically to raise voltage while staying minimally invasive and tissue compliant.
Earlier studies showed these distributed bioelectronics concept could survive integration with living tissue over time, maintaining electrical continuity during growth.
One was the team’s prior demonstration of a mesh capable of growing with and monitoring heart tissue. The other was an artificial neuron that could transmit signals directly to living cardiac cells.
This harvester is the next iteration that incorporates both electronic components and living muscle tissue into a single functional unit.
Evaluating operational limits of biohybrid harvesters
The initial result was very impressive.
Therefore, it would be best to describe this technology as “promising” as opposed to “proven.” It represents a proof of concept rather than a commercial device.
What it does show is that human cardiac cells, as they grew, meshed seamlessly into and around the PZT-loaded platform and created reliable contractions under laboratory culture conditions.
It does not provide evidence regarding how much longer the scaffold may be able to survive outside those controlled conditions.
What distributed power changes when devices work like tissue
In addition to providing a new perspective on one of the biggest challenges facing implantable electronics, how to get rid of batteries, this mesh addresses a second challenge.
Power is distributed throughout the entire system rather than relying on a central source.
When the device exists at the cellular level, you get vastly improved biocompatibility.
The device moves and looks like human tissue but works like a battery. As such, the mesh mimics biological architectures rather than attempting to fight them.
